SD-ZLD2剩余电流动作继电器

> SD-ZLD2型（SD-ZLD2G型为导轨式安装）剩余电流动作继电器（以下简称电流继电器）是一种针对发电机、变压器、输变电线路的保护装置，作为电力系统交流回路过负荷或短路的启动元件，给出报警信号或切断故障回路。 > 该产品采用微机控制芯片，具有测量范围宽、精度高、报警延时和动作延时分别设置与控制。配合 SD-LJD（LXK）系类零序电流互感器和动作继电器即组成完整的零序（接地）保护系统。适用于AC690V及以下电网系统。 > SD-ZLD2 type(SD-ZLD2G type is rail-style installation) current protection relay(hereinafter, current relay) is a kind of protection device for power generator, voltage transformer, power-transmission lines, as the starting element of the power system AC circuit overload or short circuit to give off alarms or cut off the fault circuit. > The product is using microcomputer-controlled chip, having the features such as wide range of measurement, high precision, alarm time delay and operating time delay can be set and controlled separately. Used together with SD-LJD(LXK) series ZCT and executing relay to form a complete zero sequence(ground) protection system. It applies to power system up to AC690V.

商品名称： SD-ZLD2剩余电流动作继电器

所属分类：

漏电保护器和电流继电器

邮箱：

sales@sundyelectric.cn

获取报价

相关产品

规格尺寸
技术参数

- 商品名称: SD-ZLD2剩余电流动作继电器
> SD-ZLD2型（SD-ZLD2G型为导轨式安装）剩余电流动作继电器（以下简称电流继电器）是一种针对发电机、变压器、输变电线路的保护装置，作为电力系统交流回路过负荷或短路的启动元件，给出报警信号或切断故障回路。 > 该产品采用微机控制芯片，具有测量范围宽、精度高、报警延时和动作延时分别设置与控制。配合 SD-LJD（LXK）系类零序电流互感器和动作继电器即组成完整的零序（接地）保护系统。适用于AC690V及以下电网系统。 > SD-ZLD2 type(SD-ZLD2G type is rail-style installation) current protection relay(hereinafter, current relay) is a kind of protection device for power generator, voltage transformer, power-transmission lines, as the starting element of the power system AC circuit overload or short circuit to give off alarms or cut off the fault circuit. > The product is using microcomputer-controlled chip, having the features such as wide range of measurement, high precision, alarm time delay and operating time delay can be set and controlled separately. Used together with SD-LJD(LXK) series ZCT and executing relay to form a complete zero sequence(ground) protection system. It applies to power system up to AC690V.

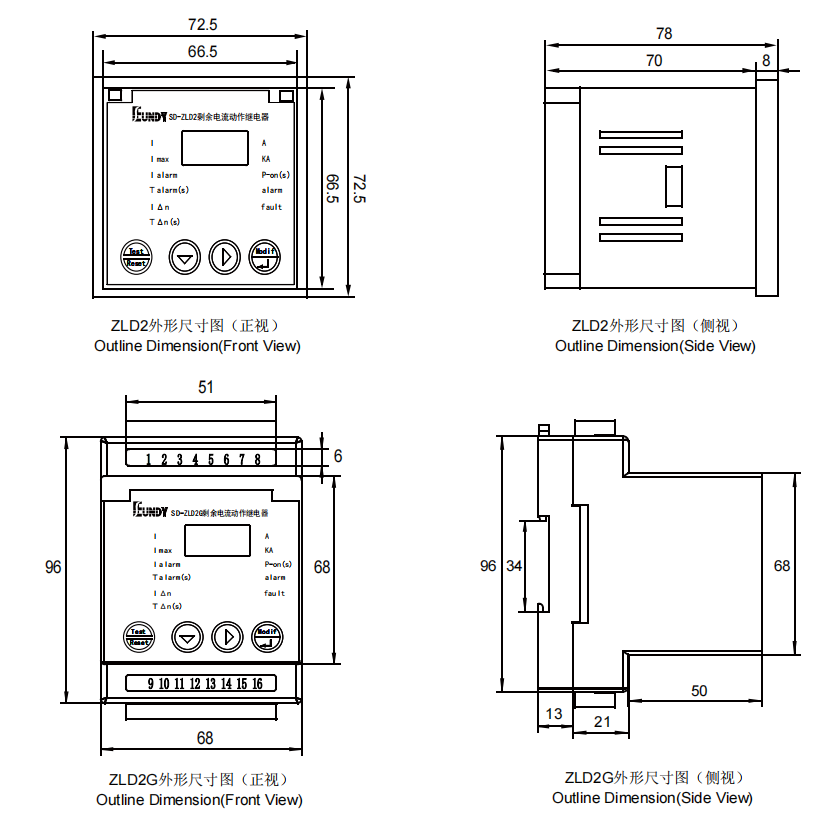

外形尺寸

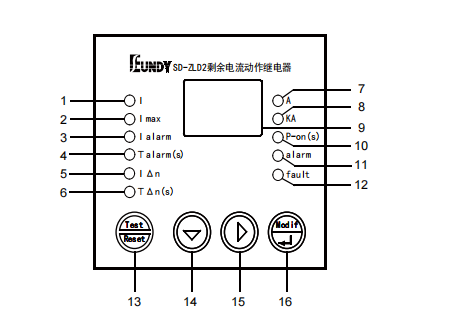

面板说明

1、电流测量状态指示灯(Current measurement status indicator)
2、最大测量值查看指示灯(Max. measurement check indicator)
3、报警电流设置指示灯(Alarm current setting indicator)
4、延迟报警时间设置指示灯(Alarm time delay setting Indicator)
5、动作电流设置指示灯(Operating current setting indicator)
6、延迟动作时间设置指示灯(Operating time delay setting indicator)
7、测量电流单位为A(Measuring current unit is A)
8、测量电流单位为KA(Measuring current unit is KA)
9、数码显示屏(LCD display)
10、上电延迟指示灯(Power-up time delay indicator)
11、报警指示(Alarm Indicatior)
12、动作指示(Operating Indicatior)
13、测试/复位操作键(Test/Reset button)
14、查询操作按键(Query button)
15、参数设置操作按键(Parameter setting button)
16、修改/确认键(Modify/Enter)

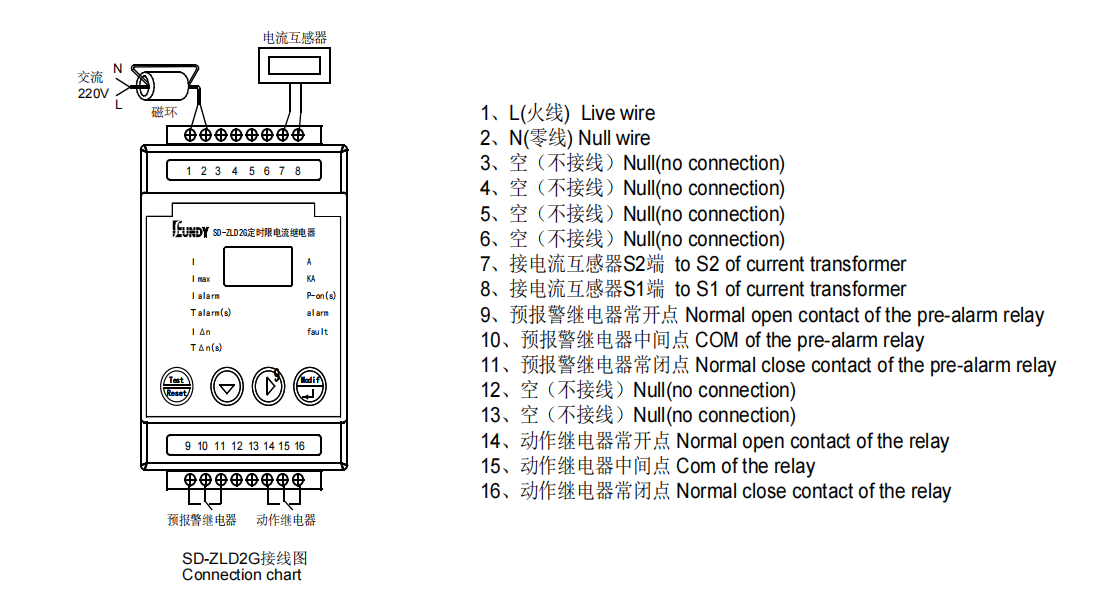

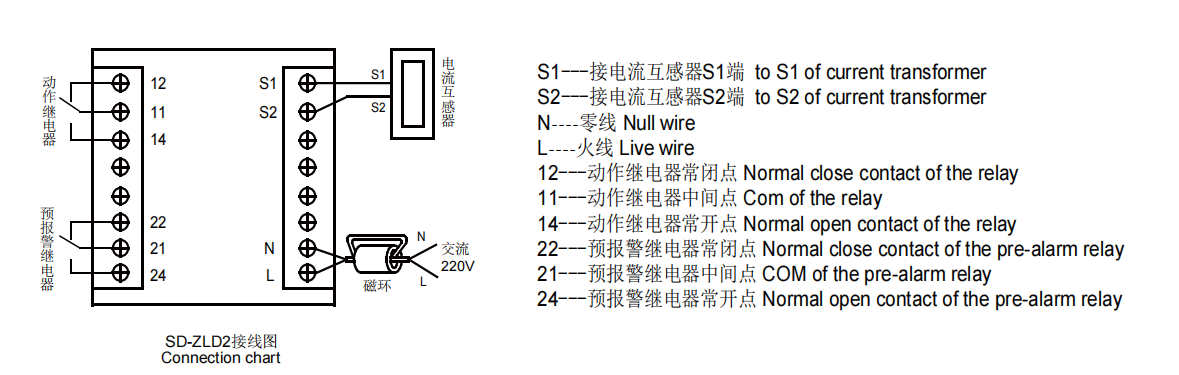

端子接线图

接线说明

互感器与仪表之间的连接线,采用每根线不小于1.5mm² 的铜双芯电缆连接。仪表电源进线经过高频磁环并且在磁环上绕一圈后与端子连接，高频磁环应靠近仪表端。

注意：穿过高频磁环的电源线只能为一根N线，一根L线不允许在配线时出现多根L线和N线同时穿过磁环。

Use 2-wire copper cable to connect the transformer and the relay, each copper wire should not be less than 1.5mm² . Connect power source wire to of the relay after a high-frequency magnetic core and with additional a roll wrapped, the high-frequency magnetic core should be close to the relay.

Attention: Only one N wire and one L wire can be placed to go through the high-frequency magnetic core, it is not allowed for multiple L wires and N wires to go through the core simultaneously

	报警电流Ialarm	延迟报警	动作电流I△n	延迟动作
	报警电流Ialarm	T alarm (S)	动作电流I△n	T△n (S)
单位Unit	A, KA	S	A, KA	S
面板指示 Panel indication	I alarm	T alarm (S)	I△n	T△n (S)
最小设定值 Min. measurement	10A	0.00S	30A	0.00S
最大设定值 Max. measurement	1.2KA	9.99S	1.2KA	9.99S
准确度 Accuracy class	1A（15A至99A测量时) (when measuring from 15A to 99A) 10A（100A至1.2KA测量时) (when measuring from 100A to 1.2KA)	0.01S	1A（15A至99A测量时) (when measuring from 15A to 99A) 10A(100A至1.2KA测量时) (when measuring from 100A to 1.2KA)	0.01S
出厂设定 Factory setting	15A	0.00S	30A	0.00S
继电器触点容量 Relay contact capacity	5A/AC220V
供电电源 Power supply	AC100~ 240V/50Hz、DC100~220V
功率消耗 Power consumption	≤5W
执行标准 Standards	GB/T 22387-2016

电流测量范围	延迟时间设置范围
报警电流：10A～1.2KA 动作电流：30A～1.2KA	上电延迟时间：1～2.55S 延迟报警时间：0.00S～9.99S任意设置(步长0.01S) 延迟动作时间：0.00S～9.99S任意设置(步长0.01S)
显示特性	响应特性
显示精度：0～+20%	报警响应时间：≤0.04S(当测量值≥2倍动作电流值时) 断路器动作时间：≤0.04S(当测量值≥2倍动作电流值时)

Measuring current range	Time delay setting range
Alarm current：10A～1.2KA Operating current：30A～1.2KA	Power-up time delay: 1~2.55s Alarm time delay: 0.00s～9.～99s, setting arbitrarily, (step 0.01s) Operating time delay: 0.00s～9.99s, setting arbitrarily, (step 0.01s)
Display features	Response characteristics
Display precision：0～+20%	Alarm response time: ≤0.04s(when the measuring operating current≥2 times of the setting) Operating time of the Circuit Breaker: ≤0.04s(when the measuring operating current ≥2 times of the setting)
