DJ-ZBT系列电流继电器

> 由DJ-ZBT系列剩余电流动作保护继电器和零序电流互感器组合，构成接地故障保护装置，适用于TN、TT和IT电网系统。通过接地电流互感器检测出接地零序漏电电流，经剩余电流动作保护继电器与设定值的比较和判别，及时发出动作信号，接通或断开报警回路，以避免事故的扩大，从而保证人员及设备的安全。 > The combination of DJ-ZBTseries residual current protection relay and zero sequence transformers forms the ground fault protection system, it applies to TN,TT and IT power system. Via the ground current transformer to detect the ground leak current, the current protection relay compares the sensed current with the setting value and issues executing signal timely, make or break the alarm circuit, to prevent the accident spreading, and ensure the safety of personnel and equipment.

商品名称： DJ-ZBT系列电流继电器

所属分类：

漏电保护器和电流继电器

邮箱：

sales@sundyelectric.cn

获取报价

相关产品

规格尺寸
技术参数

- 商品名称: DJ-ZBT系列电流继电器
> 由DJ-ZBT系列剩余电流动作保护继电器和零序电流互感器组合，构成接地故障保护装置，适用于TN、TT和IT电网系统。通过接地电流互感器检测出接地零序漏电电流，经剩余电流动作保护继电器与设定值的比较和判别，及时发出动作信号，接通或断开报警回路，以避免事故的扩大，从而保证人员及设备的安全。 > The combination of DJ-ZBTseries residual current protection relay and zero sequence transformers forms the ground fault protection system, it applies to TN,TT and IT power system. Via the ground current transformer to detect the ground leak current, the current protection relay compares the sensed current with the setting value and issues executing signal timely, make or break the alarm circuit, to prevent the accident spreading, and ensure the safety of personnel and equipment.

定期检验方法

说明:

过流继电器正常运行时无需进行任何操作，但为了确保继电器的正确动作,请定期地使用功能检验按钮对其动作情况进行确认，以确保动作正确无误。每年的定期检验可按以下方法进行：

1、由试验电流源将接地试验电流引入ZCT的一次侧，对动作值进行测定。

2、在过流继电器的监控回路内，通过开关等人工设置接地回路，对过流继电器的动作情况进行测定。继电器动作值的允许误差：实测值在继电器设定值的51～100%范围内即为正常。(定期检验仅对当前使用中的设定值进行测定确认即可)

Important:

The current relay does not need any operation when it works normally, but to ensure its function correctly, please regularly inspect and confirm its function via the function test button. Annual regular inspection can be conducted as:

1、connect testing ground current from the testing power supply to the primary of the ZCT, measure the operating value;

2、through a switch, manually set up a grounded circuit in the current relay monitor circuit, measure the operation of the current relay. The permissible error of the relay: actual measurement is within 51～100% of the setting value. (regular inspection is only to check the present setting)

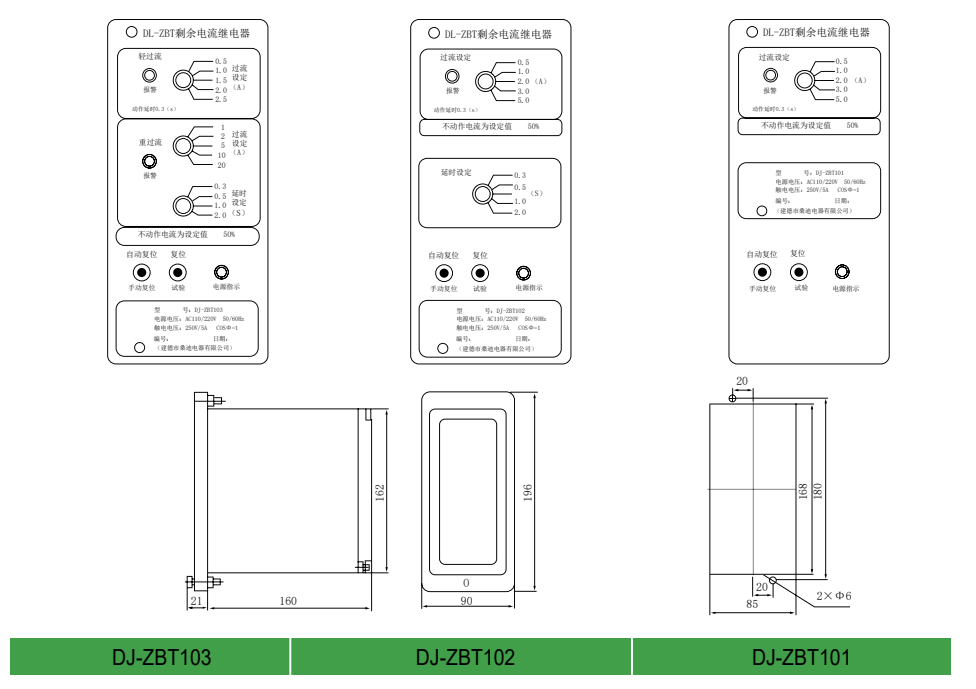

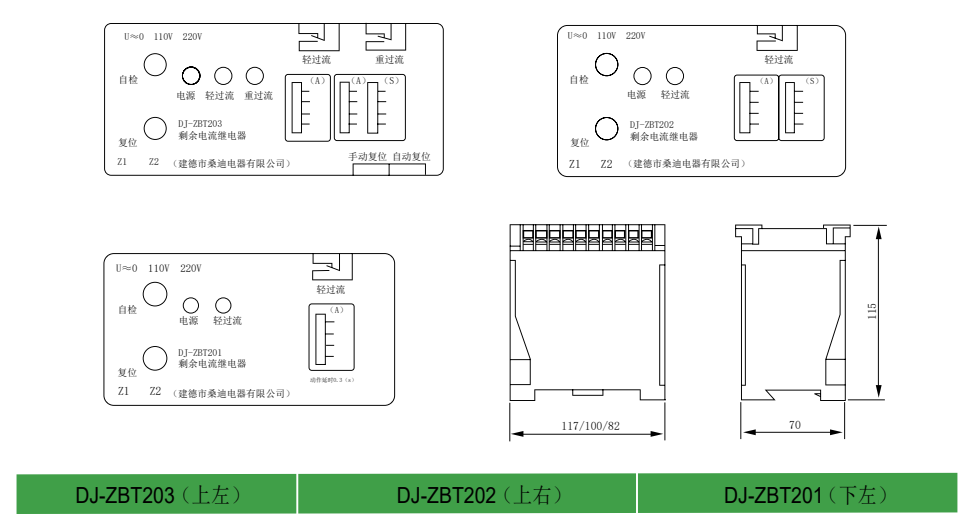

外形尺寸（含面板图）单位:（unit）:mm

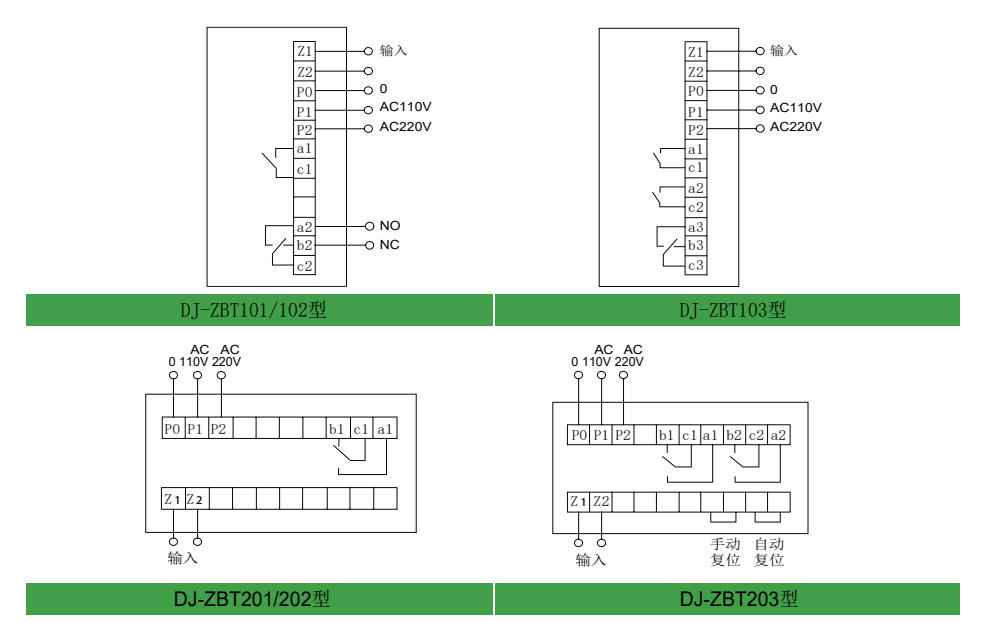

外部接线

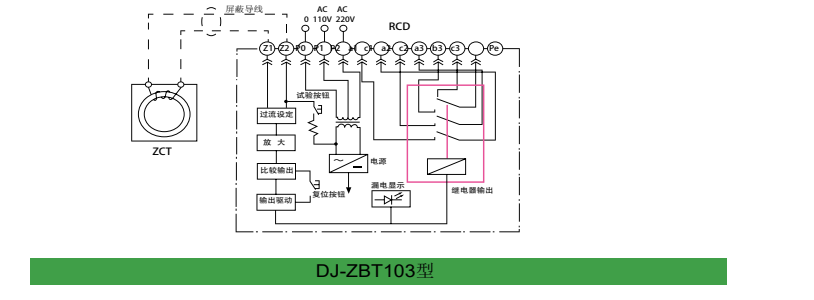

内部接线

备注

该装置多用于系统保护，作漏电接地和分级保护使用，其中DJ-ZBT□3型具有两段报警功能。
订货时请注明剩余电流互感器和剩余电流继电器型号，注意相关参数动作功能是否满足要求。
根据系统保护要求，通过旋钮开关或拨动开关，现场设定剩余动作电流和动作时间。
剩余电流互感器和剩余电流继电器间的联线宜选用屏蔽导线，截面不小于1.5 mm 。
The device is used for multi-system protection, as current leakage and time lag action protection, additionally DJ-ZBT□3has two-stage alarm function.
When ordering, please mark the type of the residual current transformer and relay, also notice that if the related parameters, function are satisfied.
According to the system protection requirements, field set the residual operating current and time through the rotary switch or toggle switch.
The wiring harness for connecting residual current transformer and current relay should be shielded conductors with cross section 1.5 mm minimum.

型号（嵌入式）Type（Embeded）	DJ-ZBT101	DJ-ZBT102	DJ-ZBT103
额定剩余动作电流（A） Rated residual operating current(A)	0.5/1.0/2.0/3.0/5.0		0.5/1.0/1.5/2.0/2.5（轻微light）
			1.0/2.0/5.0/10/20（严重Serious)
额定剩余不动作电流（A） Rated residual non-operating current(A)	≤50%
额定剩余电流动作时间（S） Rated residual operating time(s)	0.1~0.3	0.3/0.5/1.0/2.0	0.1~0.3
			0.3/0.5/1.0/2.0
额定短时耐受电流 Rated short-time withstand current	AC600A(连续Continuous)：AC5000A:0.3s(短时Short-tfime)
电源显示/漏电显示 Power display/Leak current display	LED(绿色/红色Green/Red)
复位方式Resettype	拔动式（手动）Toggle(Manual)	拔动式（手动・自动）Toggle(Manual,Automatic)
试验方式Testing	拨动式 Toggle
电源电压（Usn)Power supply vodtage(Usn)	AC110/220(-15%~+10%)
额定频率（Hz）Rated frequency(Hz)	50/60
供电系统Power system	3Φ4W、30ΦW、1Φ2W
接点构成 Auxiliary contacts	1a(1常开）1C(1常开/1常闭）1a(1NO),1C(1NO/1NC) 通电电流 5A Current Applied 5A		1a（1常开）1a(1NO)
			1a（1常开）1C（1常开/1常闭） 1a(1NO),1C(1NO/1NC)
消耗功率（VA）Power consumption(VA)	≤4		≤5
环境温度（℃）Ambient Temperature(℃）	-20~+50
安装方式 Mounting	嵌入式Embeded

型号（导轨式）Type（Railtype）	DJ-ZBT201	DJ-ZBT202	DJ-ZBT203
额定剩余动作电流（A） Rated residual operating current(A)	0.5/1.0/2.5/4.0		0.5/1.0/1.5/2.0（轻微light）
			2.0/5.0/10/20(严重Serious)
额定剩余不动作电流（A） Rated residual non-operating current(A)	≤50%
额定剩余电流动作时间（S） Rated residual operating time(s)	0.1~0.3	0.3/0.5/1.0/2.0	0.1~0.3
			0.3/0.5/1.0/2.0
额定短时耐受电流 Rated short-time withstand current	AC600A(连续Continuous)：AC5000A；0.3s(短时Short-time)
电源显示/漏电显示 Power display/Leak current display	LED(绿色/红色 Green/Red)
复位方式Resettype	拔动式（手动)Toggle(Manual)	拔动式（手动・自动）Toggle(Manual,Automatic)
试验方式 Testing	手动按钮 Manual button
电源电压（Usn)Power supply voltage(Usn)	AC110/220(-15%~+10%)
额定频率（Hz)Rated frequency(Hz)	50/60
供电系统 Power system	3Φ4W、3Φ3W、1Φ2W
接点构成 Auxiliary contacts	1a(1常开）1C(1常开/1常闭）1a(1NO),1C(1NO/1NC) 通电电流 5A Current Applied 5A		1a（1常开）1a(1NO）
			1a（1常开）1C（1常开/1常闭） 1a(1NO),1C(1NO/1NC)
消耗功率（VA） Power consumption(VA)	≤4		≤5
环境温度（℃）Ambient Temperature(℃）	-20~+50
安装方式Mounting	导轨式Rail type
