SD-JDG4-0.5系列电压互感器

> JDG4-0.5系列电压互感器为干式绝缘，双线圈户内安装型单相电压互感器，供50/60Hz、0.5KV交流电压及以下电力线路中作电压电能测量及继电保护使用。出线端标记：一次为A、N，二次为a、n。当一次有电压时二次线圈不得短路，否则互感器将被烧毁。 > JDG4-0.5 series voltage transformers are dry type insulation, two coils, in house installation and single phase. Adapted to 50/60Hz, rated voltage 0.5kV low voltage power system, as voltage and power metering and relay protection. Marks on the terminals as A and N for primary, a and n for secondary. Whenthe primary is live, the secondary coli cannot have short circuit, or that thetransformer will be burnt.

商品名称： SD-JDG4-0.5系列电压互感器

所属分类：

电压互感器

邮箱：

sales@sundyelectric.cn

获取报价

相关产品

规格尺寸
技术参数

- 商品名称: SD-JDG4-0.5系列电压互感器
> JDG4-0.5系列电压互感器为干式绝缘，双线圈户内安装型单相电压互感器，供50/60Hz、0.5KV交流电压及以下电力线路中作电压电能测量及继电保护使用。出线端标记：一次为A、N，二次为a、n。当一次有电压时二次线圈不得短路，否则互感器将被烧毁。 > JDG4-0.5 series voltage transformers are dry type insulation, two coils, in house installation and single phase. Adapted to 50/60Hz, rated voltage 0.5kV low voltage power system, as voltage and power metering and relay protection. Marks on the terminals as A and N for primary, a and n for secondary. Whenthe primary is live, the secondary coli cannot have short circuit, or that thetransformer will be burnt.

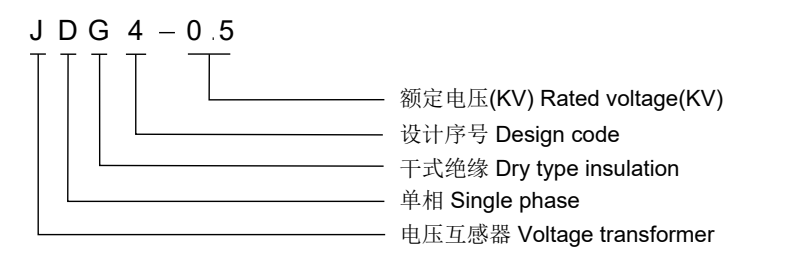

型号说明

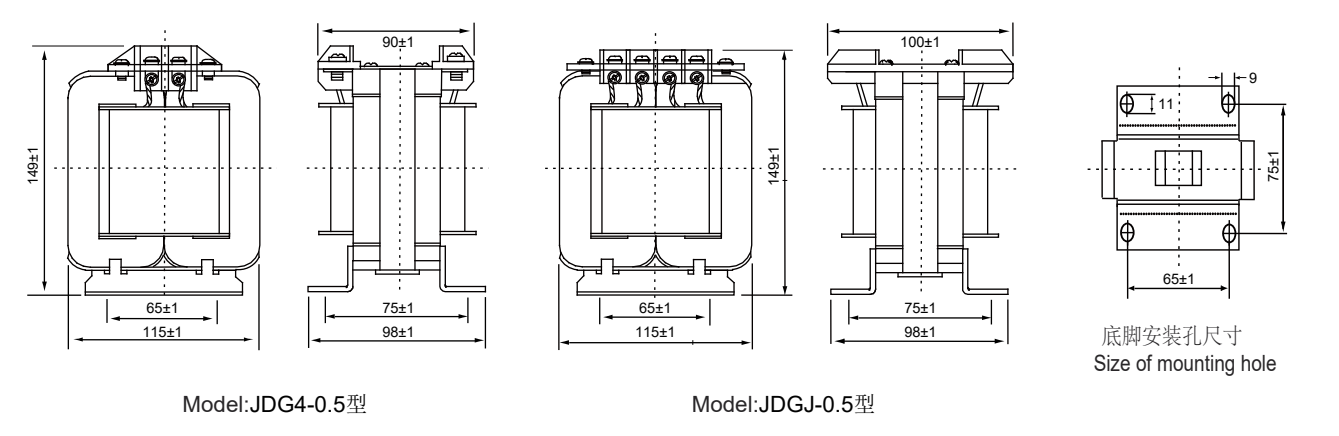

外形尺寸

额定一次电压（V） Rated primary voltage	额定二次电压（V) Rated secondary voltage	额定输出出 Rated output(VA)				极限输出（VA) Output limit
		0.2CL	0.5CL（标配）	1CL	3CL
200 (200/)	100 (100/) 110(110/)	10	15	25	50	100
220 (220/)
380 (380/)
400 (400/)
500 (500/)
600(600/)
